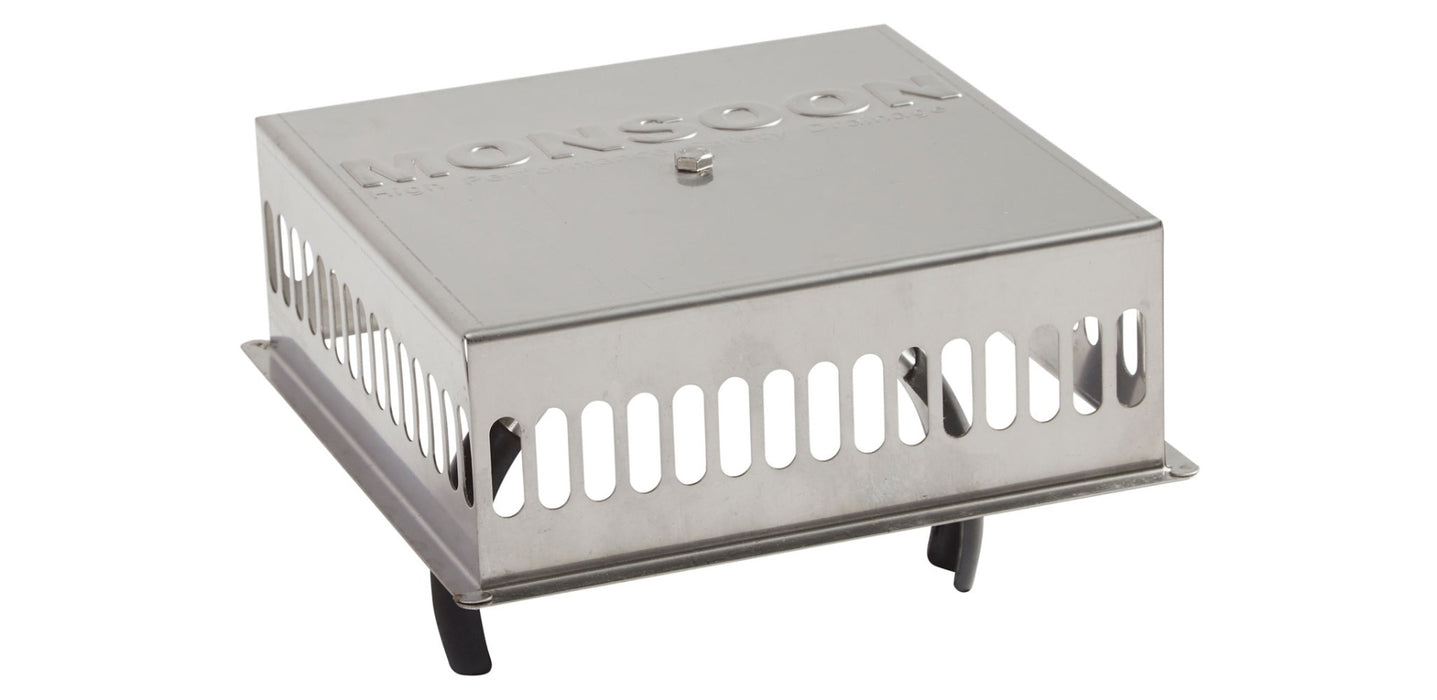

Leaf catch Monsoon stainless steel

Leaf catch for emergency drainage

• Length: 210 mm
• Width: 210 mm
• Height: 38 mm
• Fits: Ø50-Ø160 mm
• Material: Stainless steel ASI304
• Approvals: Tested and certified by TÜV Rheinland according to DS/EN 1253

Monsoon Leaf trap is a "high performance" leaf trap, by optimizing the flow in the roof well inlet, the system's capacity is increased up to 3 times compared to systems where other leaf traps are used.

The Monsoon leaf catch has rubber-coated legs that can be clamped into the roof well using tools.

The Monsoon leaf trap is used as a leaf trap in roof drains on flat roofs. The leaf trap can be used to increase the drainage capacity of the roof, as a vacuum effect is created when the leaf trap is flooded. This increases the water flow.

To achieve full effect, the drainage system must be installed according to DS/EN 1253.

Data sheet
